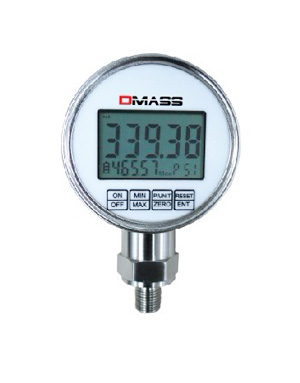

DMASS digital pressure gauge DIG
Model: DIG
|
|
Applications:
1.Mechanical engineering
2.Hydraulics / Pneumatics
3.Pumps / Compressors
4.Service
Special features;
1.Pressure ranges: from 0 … 2 bar up to 0 … 800 bar
2.Display accuracy: 0,5 % ± 1 Digit
3.Pressure connection: G1/4 DIN 3852-E, 1/4NPT and others
4.Case: Stainless steel, Nominal size 80 mm
5.Power supply: 4x 1,5 V Mignon cell AA
Description
1.Robust, precise local display
The durable stainless steel housing and stand-alone battery
power supply enable its flexible use across a range of
applications and industries. For precise and fast pressure
readings, a local digital display is the ideal solution. The bar
graph indicator, integrated into the display, with its trailing
pointer function, as well as a stored MIN/MAX peak value,
enable the effective analysis of the measuring point.
2.Standard and Enhanced Models
For poor lighting conditions, an "enhanced" model
(DIGHH) with a back-lit display and a rotatable housing is
available, allowing its optimisation to the local conditions.
Additional configurable functions are: Auto Power-off, tare
function, password protection. The standard design
(DIGNN) already allows the user to switch easily between
the most widely-accepted international measurement units;bar,mbar, psi,kgf and MPa,Kpa.
3.Proven measurement technology
Sensors manufactured by DMASS have, for decades, been
a guarantee of high accuracy, long-term stability and repeatability
within industrial pressure measurement. The most
suitable sensor technology - metal thin-film or ceramic - is
used, depending on each application and the measuring
range. |
|
