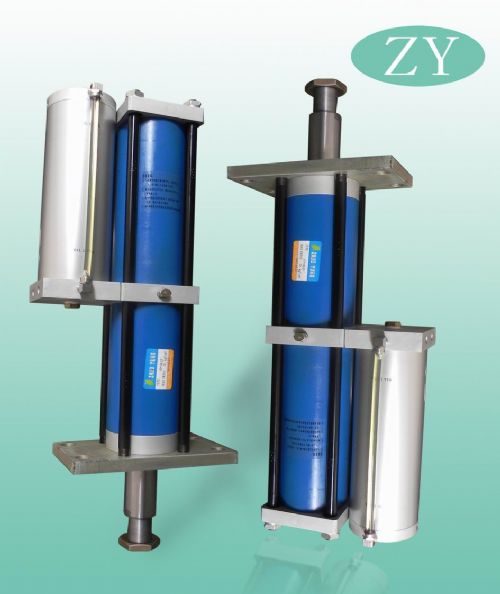

Hydro Pneumatic Boosting Cylinder
Model: HPN
|
|
Features:
•Easy to Install
•Easy to Use
•Fast Speed
•Soft Landing
•High Output
•Easy to Maintain
•Small Space
Specification:
Bore of Cylinder: ø63,ø63,ø100,ø125,ø160
Total Stroke(mm): 50,100,150,200
Force Stroke(mm): 5,10,15,20
Total Output Force(T): 1,3,5,10,13,15,20,30,40
Output(1 T for Example):
Operating Pressure(kg/cm2): 1 234 5 6 7
Pre-press Force(kg): 30 60 90 120 150 180 210
Boosting Force(kg): 300 600 900 1250 1550 1850 2150
Return Force(kg): 20 40 6080 100 120 140 |
|
