underground parking system
Model: PSH2-UNDERGROUND
|
|
Working Principle

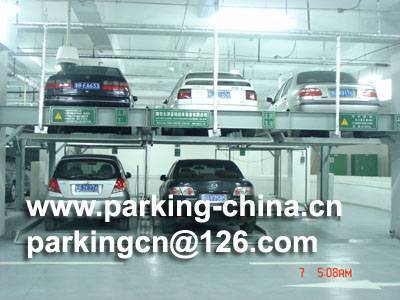

There are 2 levels of upper and down spaces. The car can go into and out of the down level spaces directly by lifting and sliding movement. When the space in the ground level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.
Characteristics of the System
Optional modes of drive: Hydraulic high speed drive; Motor steel rope rolling drive; Motor gear box chain drive.
It adopts 7 national patents technology.
It has safeguard functions of over going protection and crashing protection.
The whole system is adopted galvanized anti-corrosion treatment
Hydraulic drive has advantages of over loading protection, empty loading motor starting, saving energy and environmental protection.
Automatic Control System has Fault Diagnosis and display for a quick troubleshooting.
Adapted places
Underground basement with a height less than 3.6m or open spaces
Parameters
Mode of drive Hydraulic Motor
Size of car (L?W?H) 5000mm?1850mm?1550mm
Weight of car 2000kg
Lifting motor power 3kw 2.2kw
Lifting speed 7-16m/min
Sliding motor power 0.2kw
Sliding speed 8m/min
Electricity AC380V,50Hz, 3 phases 5 wires system
Safeguard devices Hydraulic whole protection and anti-fall frame Anti-fall frame (our patent)
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion paint
Modes of operation LCD/ IC card/Manual
Controller PLC
Way of parking in and out Forwarding, reversing into the space
|
|
