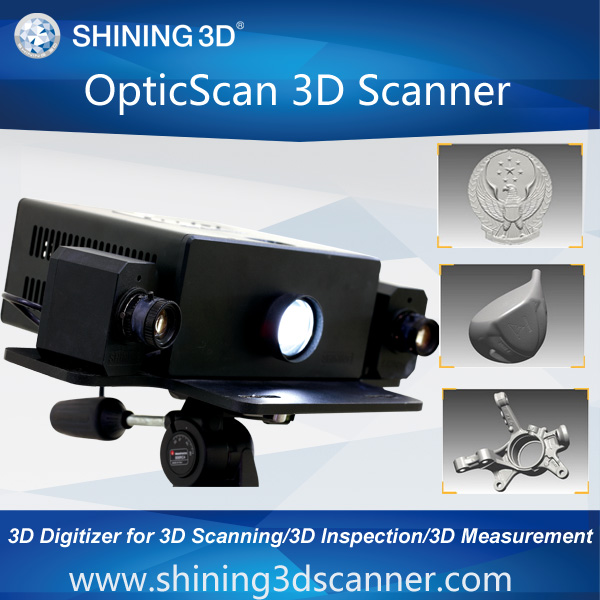

OpticScan-DL 3D Scanners
Model: OpticScan-DL-Classic
|
|
OpticScan 3D Scanners are the most versatile and popular 3D Scanners of Shining3D-Scanner. One scanner with the capability to provide the accuracy and detail required for 3D scanning of jewelry, medium size sculptures, even large-scale cultural relics, etc.OpticScan include two series:
- OpticScan-D: Dual Lens Series
- OpticScan-Q: Four Lens Series are available to change scan range freely without re-calibration.
OpticScan 3D Scanners scan the 3D digital model of freeform surface object with high accuracy in short time.
Applications:
- Data capture: 3D Measurement, 3D Scanning, 3D Archive;
- R&D: CAD Design,Reverse Engineering, RP&RM;
- 3D Inspection: CAV & CAE anlysis
Features
1.High Accuracy
- On the basis of German optical scan standard VAID / VDE 2634, the highest single range accuracy reaches 7?m.
- Create highly dense cloud piont data with clear surface details.
- Software available to noise removal with high accuracy.
2.Get surface data easily
- Use non-contact measurement, get surface data easily, suitable for soft object or complex surfaced ones.
- Single range scan within 5 seconds to obtain accurate 3D data, ensuring high efficiency.
3.Safe and easy
- No damage to molds, samples or cultural relics.
- Use white light scanning, no damage to eyes.
- Small and portable, fit for large or heavy objects measuring.
4.Change scan range freely
- Four lens series are available to change scan range freely without re-calibration.
5.Economical
- OpticScan 3D Scanners widely applied in industrial components, consumer products, cultural relics and jewelries,etc.
- High quality but reasonable price,which helps you achieve the maximum benefits with the minimum investment.
Specifications
Model: OpticScan-DL-Classic
Application Field:
large auto parts,aircraft component,large,molds,castings,cars,interiors,large-scale cultural relics,sculpture,etc
Measuring Area by single Scan: 400mm*300mm(adjustable)
Accuracy: 0.04mm-0.02mm
Resolution (Point Space):0.3mm-0.2mm
Scannable Object size: 500mm~1500mm(if >1500mm,cooperating with 3D Photogrammetry system)
Scanning Type: white light and non-contact (as the photographed form)
Data Format: ASC,STL
Ratio of image resolution: 1,310,000 Pixels (which can be upgraded to 200 million, 300 million or even 500 million pixels according to customers` needs.)
Single Scanning Time: < 5S
Way of registration: Automatic and best-fit registration together |
|
