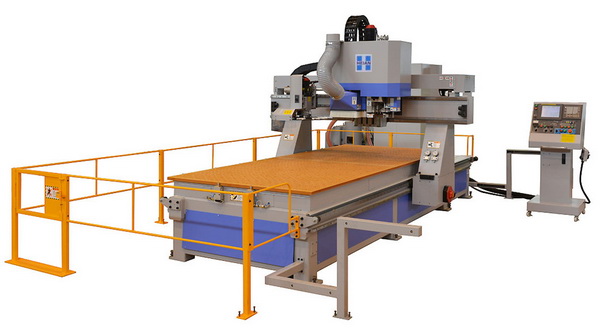

| Heian EG-231 gantry router
|
|
Heian''s EG-231 gantry router is the right choice for those looking for a nested-based manufacturing machine that is value-priced, but still offers the features, productivity, and dependability that Heian CNC routers are known for. In addition, the space-saving gantry design of the EG-231 allows the router to fit into tight manufacturing areas.
Features
Fixed-table gantry designed for saving space
11 kW (15 hp) 24000 rpm HSK-63F router spindle with 8-tool ATC
L-shaped, 9-spindle (V7+H2) flexible drilling unit
5'' x 12'' high-flow, flexible matrix-grid vacuum table
40 HP oil-sealed liquid-ring vacuum pump
FANUC 210i-MB with built-in Windows PC
Options: dual-zone 24'' table, C-axis, 12-tool ATC, saw/V-groove head, etc. |
|
