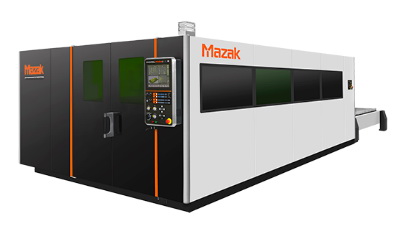

| OPTIPLEX 3015 FIBER
|
|
Superior performance in thin-gage mild steel, stainless steel, aluminum and other exotics
PROCESS: 2D, FLYING OPTICS, 2 PALLET CHANGER
MACHINE DESCRIPTION
New Fiber technology and higher wattages deliver similar cut ranges to CO2 laser-cutting machines, but with substantive advantages when processing thinner materials. Mazak's new Fiber technology extends the performance advantages delivered by our industry leading OPTIPLEX CO2. The OPTIPLEX 3015 Fiber offers superior edge quality, more stable cut performance and greater throughput for applications utilizing stainless steel, copper, brass, bronze, aluminum, hastelloy, inconel, titanium, thin gage mild steel, and other exotic metals. There is no need for additional surface cleaning when painting mild steel cut with nitrogen. OPTIPLEX 3015 Fiber incorporates new Zeta-7 features to automate and optimize the Fiber laser process. This ground-breaking technology incorporates a new Mazak exclusive head design and integrates Intelligent automation features with superior cutting speeds to deliver greater throughput for many applications. This Zeta-7 system overcomes the typical challenges of using varied workpiece materials by improving productivity without compromising cutting conditions. These optimal cutting conditions can even be retained during extended unattended operation. The OPTIPLEX 3015 Fiber also features the new Preview 3 control with a 15" touch screen and straightforward user interface to simplify machine operation. The graphical interface clearly visualizes the cutting path and automatically determines process conditions including the required lens, nozzle, feedrate and laser output for different materials and thicknesses. The OPTIPLEX 3015 Fiber can process sheets up to 5 feet by 10 feet. OPTIPLEX Fiber series machines are available in 2.0kW and 4.0kW configurations.
PERFORMANCE ADVANTAGES
Zeta-7 breakthrough technology includes the following intelligent functions that reduce operator dependancy, improves cut quality and increases productivity.
Beam Diameter Control
Nozzle Changing
Servo Focus Control
Auto Focus Calibration
Pierce Sensing
Plasma Detection
Burn Detection
A 2 pallet changer design with a helical rack and pinion positioning system that features high through-put and rugged construction delivers a combination of performance and value.
New Preview 3 control with touch screen and integrated tech tables simplifies operation.
Utilizing a fiber beam delivery system significantly lowers operating costs for applicable material thicknesses and types. |
|
