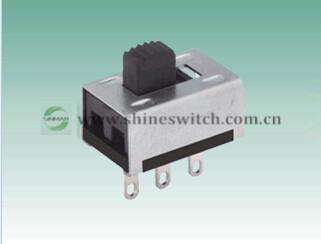

Home > Industry Automation > Industrial Safety & Industrial switch > Shanghai Sinmar ElectronicsTin XN-1209-BSR Slide Switches 9(4.5)A125/250VAC

Shanghai Sinmar Electronics Co.,Ltd Company  |  Products  |  News  |  Contact Us Shanghai Sinmar ElectronicsTin XN-1209-BSR Slide Switches 9(4.5)A125/250VAC Model: XN-1209-BSR Technical characteristics Rating: 8A 250VAC 8A 250V 16A 125VAC / 8A 250VAC Insulation resistance: ≥100mΩ (500VDC) Contact resistance: ≤30MΩ (initial value) Withstand voltage: 2500V, 50 / 60Hz, 1min Switching frequency: 3.5 times / sec (CQC, TUV, VDE) 6-10 times / sec (UL) Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude Switch button efforts: ≥50g Life: Mechanical ≥10,000 times; electrical ≥6,000 times Working temperature: 0 ~ 65 ?C Wire length: Soft line 0.75 ~ 1.5mm? Hard line 1 ~ 2.5mm? Safety Certification: UL, CUL, VDE, CQC Related Products Shanghai Sinmar Electronics KW3A-16Z6 Micro Switches 16A250VAC 3PIN Arc Lever Sw Shanghai Sinmar Electronics Co.,Ltd Technical characteristics Working speed: 0.1mm ~ 1m / s and drive the way Rating: 16A250VAC (default value) 10A250VAC / 5A250VAC / 1A250VAC Operating ... SC26-2 Programmable Safety Controller Banner Engineering Corporate With a smaller footprint and addition of Boolean logic functions, the SC26-2 was designed to be easy to use, flexible and efficient. *XS26-2 Expandable ... Hinge Style Safety Interlock Switches Banner Engineering Corporate Overview Three types are available - load-bearing hinge, hinged lever and rotating hinge. Safety switching point can be set anywhere within 0-180º ... EZ-SCREEN Low-Profile Safety Light Curtain Systems Banner Engineering Corporate Overview The space-saving, compact profile of the EZ-SCREEN LP is ideal for smaller machines, yet robust enough to meet the demands of large power ...
