Home > Industry Automation > Industrial Safety & Industrial switch > Micro Switch Series Basic Form Waterproof 3PIN S

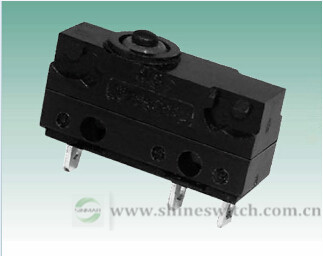

Shanghai Sinmar Electronics Co.,Ltd Company  |  Products  |  News  |  Contact Us Micro Switch Series Basic Form Waterproof 3PIN S Model: WS1 Operating speed:0.1mm~1m/s(No lever) Operating frequency: Mechanical 60cycles/min; Electrical 25 cycles/min Insulation resistance: >=100mΩ(500VDC) Contact resistance: Terminal type<=50mΩ Wire type<=100mΩ Test voltage: Between terminal of the same polarity AC1000V,50/60Hz,1min Between current-carrying metal parts and Ground, and between each terminal and non- AC1500V,50/60Hz,1min Current-carrying metal part. Vibration resistance:10~55Hz,1.5mm double amplitude Shock resistance: Endurance:1000M/S^2(approx.100G)max Wrong action: 300M/S^2(approx.30G)max Life expectancy:machanical>=1,000,000 cycles electrical>=50,000c cycles Electric shock proof protection grade: ?class Degree protection provided by enclosure: IEC IP67 Safety approvals: UL, CUL, TUV, CE Related Products Shanghai Sinmar ElectronicsTin XN-1209-BSR Slide Switches 9(4.5)A125/250VAC Shanghai Sinmar Electronics Co.,Ltd Technical characteristics Rating: 8A 250VAC 8A 250V 16A 125VAC / 8A 250VAC Insulation resistance: ≥100mΩ (500VDC) Contact resistance: ... Shanghai Sinmar Electronics DB-14 Power Sockets Multifunction Sockets Shanghai Sinmar Electronics Co.,Ltd Temperature:0~85? Air pressure:86Kpa~106Kpa Operating temperature:﹣10~105? Relative humility :35%~85%RH Insulation resistance:≥100mΩ(500VDC) ... Shanghai Sinmar Electronics KW3A-16Z6 Micro Switches 16A250VAC 3PIN Arc Lever Sw Shanghai Sinmar Electronics Co.,Ltd Technical characteristics Working speed: 0.1mm ~ 1m / s and drive the way Rating: 16A250VAC (default value) 10A250VAC / 5A250VAC / 1A250VAC Operating ... SC26-2 Programmable Safety Controller Banner Engineering Corporate With a smaller footprint and addition of Boolean logic functions, the SC26-2 was designed to be easy to use, flexible and efficient. *XS26-2 Expandable ... Hinge Style Safety Interlock Switches Banner Engineering Corporate Overview Three types are available - load-bearing hinge, hinged lever and rotating hinge. Safety switching point can be set anywhere within 0-180º ...
