Home > Metalworking Machinery > Surface Grinding Machines > IG 380 SD Surface Grinder

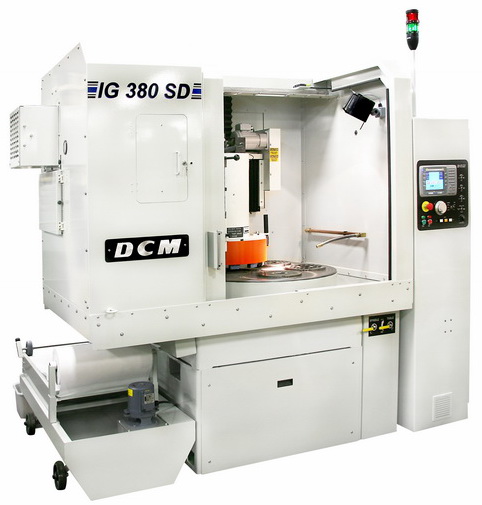

DCM Tech, Inc. Company  |  Products  |  News  |  Contact Us IG 380 SD Surface Grinder DCM IG 380SDThe IG 380SD provides the greatest capacity of all of the DCM grinders, it features a 36" diameter electromagnet chuck with through table vacuum, air or hydraulic clamping. The powerful 30 HP grinding spindle provides exceptional grinding performance for both conventional and superabrasives. The IG 380SD is configured with a full coolant enclosure, air/mist filtration and swarf system with continuous filtering of the coolant. Clean coolant results in repeatable grinding performance. The automated grinding control simplifies machine operation and ensures excellent grinding results. Grinding Applications: Fixture & Die preparation Grinding Glass Plates to Thickness Crystal Grinding Job shop Applications Machine Specifications Servo Drive PLC Control 30HP Grinding Spindle Motor Variable Speed Grinding Spindle Air Mist Collector Bed Style Coolant Filtration System 36? Electromagnetic Chuck w/Variable Force Control 96? x 62? (w/o Swarf Filtration) Related Products SG 7100 Brake Rotor Grinder DCM Tech, Inc. Brake Rotor Grinder, Brake Rotor GrindersDCM Tech's SG 7100 resurfaces heavy truck and auto rotors to OEM or better finish and accuracy in minutes. Crosshatch ... Helitronic Mini Power - Special class for small tools Walter Maschinenbau GmbH Helitronic Mini Power - Special class for small tools With an identical machine design to the Helitronic Power, the Helitronic Mini Power ensures cost-effective ... Helitronic Power Walter Maschinenbau GmbH Helitronic Power - Ground-breaking for maximum power The Helitronic Power with its clearly arranged machine design is the first choice when it comes ... Helitronic Basic - High flexibility for regrinding Walter Maschinenbau GmbH Helitronic Basic - High flexibility for regrinding The Helitronic Basic offers maximum cost effectiveness and flexibility. Characteristics that are ... NUMROTO NUM AG - CNC HighEnd Applications NUMROTO - 25 years high-end technology in tool grinding NUMROTOplus? is a software package for producing and resharpening a whole range of tools. ...
