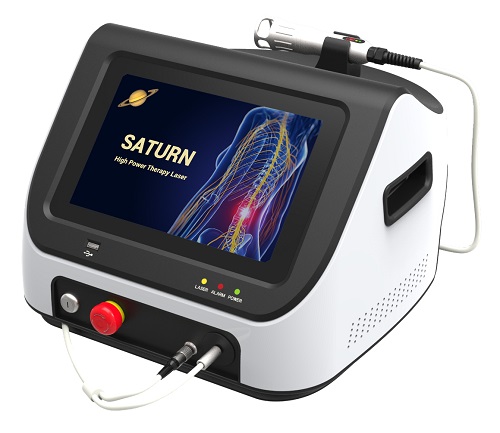

Diode laser for therapy
Model: Sat20/Sat30
|
|
Laser TypeGaAIAs diode laser
Model Sat20/Sat30
Wavelength 635nm/810nm/910nm/940nm/980nm/1064nm
Maximum Power 20W/30W Multiple Wavelength Combined
Typical Combination635nm 400mW + 810nm 6W + 980nm 10W + 1064 4W
Operation Mode CW/ Pulse/ G-Pulse
Pulse Duration50µs-9s
Repetitive Rate0.1Hz-10KHz
Optical Fiber 400µm-1000µm, SMA905
Aiming Beam 635nm, 2mW
Operation System 10 " inch HD true color display/Android OS
Power Supply 110V~240V, 3A, 50/60 Hz
imensions370(W)*400(L)*245(H) mm
Weight 7 Kg
Our Saturn and Mercury therapy laser systems provide a deeper depth of tissue penetration and ultimately provide a dose that result in positive reproducible outcomes, with our professional therapy handpiece. |
|
