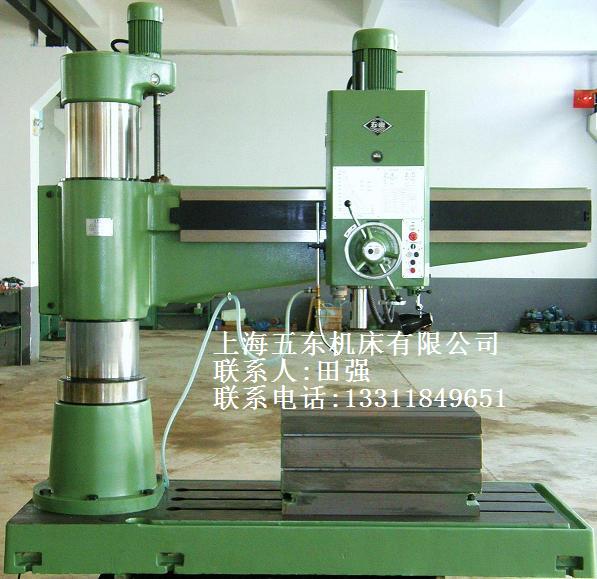

Radial drilling machine
Model: Z3050x16/Z3050x18
|
|
Radial Drilling Machine Model Z3050???16/Z3050*18 is an ideal universal machine with wide applications for processing medium and small parts in workshops. It is designed for drilling, reaming, spot-facing, and tapping. With special tooling even boring operation is available.
Radial Drilling Machine Model Z3050???16/Z3050*18 is one of the up-grade products featuring in high performances & reliability, easy operating & maintenance, simple construction & long servicing life etc.
Following are its main features:
1. A hydraulic Speed & feed pre-setting device is adopted to reduce the down-time.
2. Controls of spindle forward & reverse rotating, stop (brake), speed & feed changing and idle running are available with only one lever.
3. All controls are centralized at an ease of a access location for convenience.
4. Light and sensitive movement of spindle head & arm.
5. Hydraulic rhombic clamping device is applied for clamping spindle head, radial arm and columns resulting large clamping force, minor displacement of the spindle.
6. Case-hardened of the surfaces for upper guide way of the arm, the quill and the column surfaces for mounting the roller bearings so as to prolong the servicing life.
7. A releasing wrench is supplied for removing the tools conveniently.
8. Complete safety guides are employed for the machine which includes safety nut and electrical protector for the column, safety ball clutch for the feed mechanism, dustproof rings for the column and grounding for the electrical equipment etc. ensuring the machine to be operated in security.
9. This machine has set-cutting safety protecting cover for spindle''s cutting.(Special ordering)
Radial drilling machine:
The radial drilling machines, model Z3050???16/Z3050 ??? 18 is a universal machine, capable of drilling, counterboring, boring, reaming, spot-facing, tapping and other similar operations. It is widely used in machine manufacuring industry for processing small and medium sized machine parts and also suitable for being used in repair shops. Specifications
Type Z3050???16 Z3050???18
Max. drilling diameter 50 mm 50 mm
Distance from the spindle axis to the column
Max/Min 1600 / 350 mm 1800 / 350 mm
Max. distance of spindle head on arm 1250 mm 1450 mm
Distance frome spindle nose to working surface of base Max/Min 1210 / 310 mm 1210 / 310 mm
Taper of spindle boreMorse Morse No.5 Morse No.5
Max. travel of spindle 315 mm 315 mm
Number of spindle speeds 16 steps 16 steps
Range of spindle speeds 25-2000 r.p.m 25-2000 r.p.m
Feed steps 16 steps 16 steps
Feed range 0.04-3.2 mm/r 0.04-3.2 mm/r
Main drive motor power 4 kW 4 kW
Weightapprox 3500 kg 4300 kg
Overall dimensions L???W???H 2490???1060???2625 mm 2690???1060???2625 mm
|
|
|
|
|
