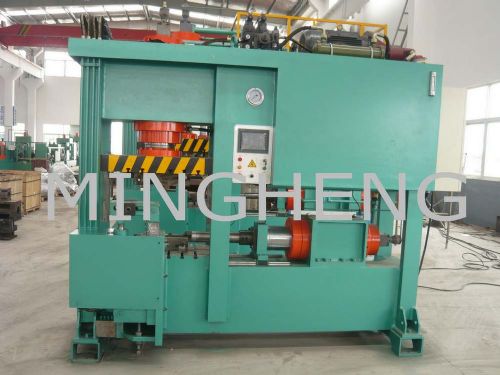

Stainless steel hydraulic elbow making machine
Model: YLT
|
|
Elbow making machines (elbow cold forming machines) are designed and constructed for making small radius elbows with curvature of 1.0D to 1.5D and with diameter from 1/2" to 28" of stainless steel, cabon steel, alloy steel, etc. The production standard will be ASME B16.9, ASME B16.28, DIN2605, SMS, 3A, customized drawings is preferable, These produced elbows will be widely used in the connection of the industrial pipelines for the Petrochemical, Gas and Oil pipes, Electrical Power, Food, etc.
Main Features of Elbow making machines (Elbow cold forming machine):
1.Elbow making machine has attained the CE and ISO certificates;
2.High strength steel metal via gas shielded welding framed machine base is used on elbow making machine;
3.high rigidity and load balance are the main design features of the elbow making machine in order to keep excellent accurancy;
4.Elbows can be formed in one cold forming process with no needs for any calibration
5.Elbow making machine has the features of energy saving, high working efficiency, less labor cost, batch production
6.Elbow making machine adopts imported hydraulic system and electric appliances.
7.Elbow making machie adopts PLC button centralized control, uses touch screen, applys proportional valve to regulate pressure. It can be adjusted and operated manually and automatically.
We also supply:
Tee making machine, induction elbow making machine, induction pipe bending machine, elbow beveling machine, tee beveling machine, reducer beveling machine, pipe fitting chamfering machine, bevel ends machine,elbow size die moulds and mandrils, pipe fittings. |
|
