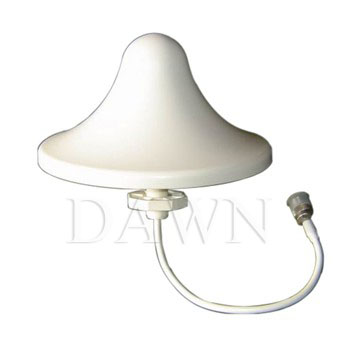

698 to 2700MHz 3dBi GSM/CDMA Omni Ceiling Mount Antenna
Model: QX-698/2700-3A
|
|
Model: QX-698/2700-3A
Specification:
Frequency Range:698-2700MHz
Gain:3dBi
VSWR:<=2.0
Input Impedance:50?
Vertical Beam width:360?
Electrical Down tilt:0?
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radiating Element Material: Aluminum
Radome Material: ABS
Weight:0.25kg
Dimension:?165???100 mm
Features:
High Gain, Low VSWR;
Light weight, Good appearance;
Adopt good quality ABS, long operating time;
Fix on the Ceiling with Nuts. |
|
