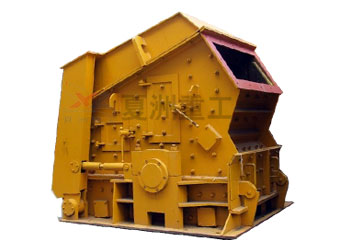

High Efficiency Impact Crusher
Model: PF1315
|
|
Impact crusher has come up to advanced national standards. The machine adopts brand-new design conception with modularization, CAD structure and finite element to analyze and produce optimized parts. This series of products can process the material with the side length of 100 to 500mm and the compression strength can reach 350Mpa and have the advantages of big reduction ratio and cubic shape after the crushing of materials. Impact crusher applicable for crushing the semi-hard materials and have big throughput and small granularity of materials.
It has a feature of big crushing ratio, high-efficiency crushing, cubic shape, selectable crushing, etc. It is suitable for crushing different compression strength of rocks and is widely used in mining, cement and concrete industries.
Working Principle of Impact Crusher:
When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won''t stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
Features and Benefits
1. Innovative cavity design, high output and excellent reshaping function.
2. Unique design of opening at side, which is convenient for maintenance and replacement of wearing parts.
3. Keyless connection of rotors, which is convenient to use and maintenance.
4. Modularized design to reduce kinds of wearing parts |
|
