| CoroMill 390 Smooth shoulder milling and ramping
|
|
The CoroMill 390 family covers a large, versatile programme for many applications. It generates a good quality 90-degree shoulder and is ideal for ramping and helical interpolation. CoroMill 390 is available with integrated dampening for a productive and vibration-free machining.
Features
??ight-cutting insert geometry for low cutting forces and to avoid deflection and vibration
??utter versions for shoulder milling and long edge milling
??hrough coolant
??nsert sizes -11, -17 and -18 for depths of cut up to 15.7 mm
(0.618 inch)
??arge range of insert corner radii, geometries and insert grades
??oromant Capto coupling, Cylindrical shank, Arbor, CIS Arbor, Weldon, and Threaded mounting
??versized diameter for clearance is available
??ailor Made
Diameter range
??nd mill and square shoulder face mill: 16-84 mm
??nd mill: 12-42 mm (0.500-1.500 inch)
??quare shoulder face mill: 40-200 mm (1.500-8.000 inch)
??ong edge milling cutter: 32-200 mm (1.250-4.000 inch)
Dedicated applications

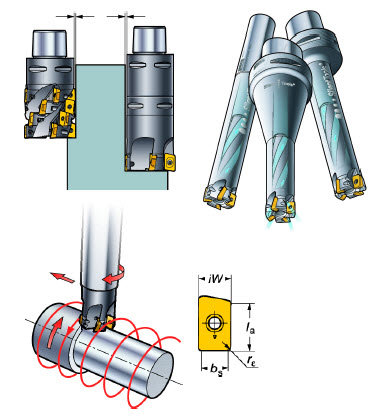

??versized cutters enhance the accessibility and provide natural clearance to tight fixtures.
??utters with integrated Coromant Capto coupling and adaptors provide the optimal rigidity for use on extended tool assemblies.
??ilent Tools vibration dampening for increased metal removal and improved surface finish, when using slender tools.
??urn milling, roughing and finishing, using one or more dedicated wiper inserts available in size 11 and 18 and radius 0.8 and 1.6.
Tools with integrated dampening
By integrating a dampening module into our CoroMill 390 tools, we make it easy for you to stabilise your whole machining process. Whether you increase your metal removal, improve your surface finish, secure your process or reduce your production costs you will certainly enjoy the silence.
For productive vibration free machining in multi-task and 3-/5-axes machining centres from semi-roughing to semi-finishing in face and shoulder milling operations.
??educe vibrations - gain confidence to increase the cutting parameters (ap/zn)
??eliable predictable machining ??the opportunity to run unmanned production
??xcellent accessibility from extra long reach capability of the tools
??roductivity improvements of up to 100% compared to undampened tools
|
|
