| Helitronic Mini Power - Special class for small tools
|
|

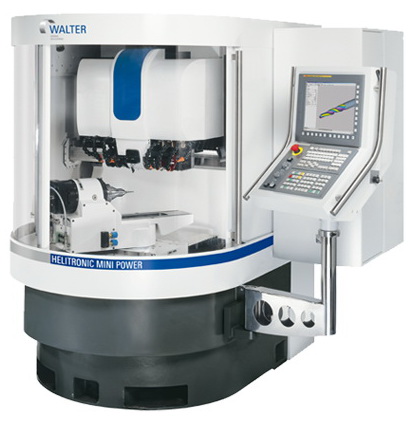

Helitronic Mini Power - Special class for small tools
With an identical machine design to the Helitronic Power, the Helitronic Mini Power ensures cost-effective machining for small tool diameters, thanks to minimal travel and space requirement. It is the first choice when it comes to the flexible production and resharpening of rotationally-symmetrical tools and production parts from a diameter of 1 mm.
Machine base:
Gray cast iron
Drives:
Motor output:
9.0 KW/9500 rpm
Spindle diameter:
70 mm
Cooling:
Belt filter system 350 litres 6bar
Control system:
FANUC 310i
Standard software:
P1,P2,P3,ToolStudio
Max. wheel diameter:
150 mm (200 mm)
Complete machining D/L:
100 mm/185 mm
Machining length perimeter/front:
255 mm/185 mm |
|
