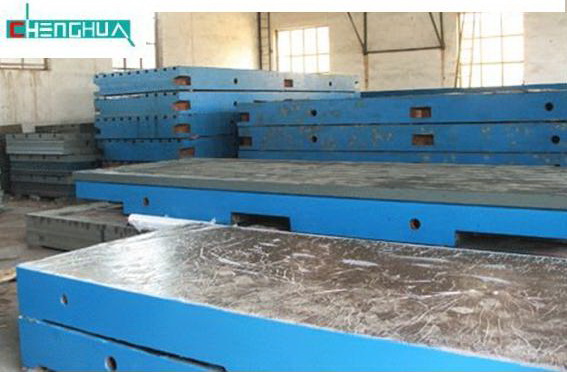

Shanghai Chenghua Machinery Co., Ltd. Company  |  Products  |  News  |  Contact Us cast iron surface plate Model: CH012 1. Specification: 100*100-3000*6000 (the special specification product can be manufactured according to the drawings from customers). 2. Usage: It is applicable to various inspections and benchmark planes for accuracy measurement. It can be used as the measurement benchmark for machine tool inspection and to inspect the dimension accuracy or running difference with the function of performing precise lineation. It is an inevitable tool during machine manufacturing. 3. Material and processing: The material is high strength cast iron HT200-300, and the rigidity of working face reaches HB170-240. It goes through twice of man work processing (man work anneal by 600? with natural validity of 2-3 years) in order to make the product stable in accuracy and good in grinding resistance. 4. Accuracy: It is in accordance with the procedure of state standard for measurement and inspection, which is divided into four levels of 1-4. Related Products µsurf cylinder - measurement of cylinder running surfaces NanoFocus AG The µsurf cylinder enters the cylinder bore using an angled optical system. Bore diameters from 70 mm, as well as and a penetration depth of up to ... cast iron floor plate Shanghai Chenghua Machinery Co., Ltd. 1. Specification: 100*100-3000*6000 (the special specification product can be manufactured according to the drawings from customers). 2. Usage: It ... Helicheck Plus Walter Maschinenbau GmbH Helicheck Plus - 4-axes CNC measuring machine for non-contact complete measurement of precision tools, micro tools, grinding wheels, rotationally-symmetrical ... Helicheck Basic 2 Walter Maschinenbau GmbH Helicheck Basic 2 - Impressive performance parameters for entry into optical CNC measuring technology 3-axis CNC measuring machine for non-contact ...
