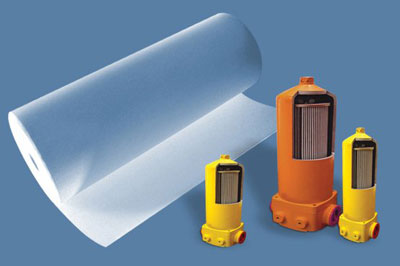

| Composite Fiberglass Filter Paper
|
|
Introduction:
The composite fiberglass filter paper is made of superfine glass fibers as filtration layer which is covered with synthetic or natural fibers as protection layers on both sides so that the mechanical strength of the product is improved and the problem of "secondary pollution"due to the fall-off of superfine fibers is solved. As a novel filtration material, this product has characteristics of high filtration efficiency, high dirt holding capacity, low resistance, high mechanical strength and stable biochemical property.
Specification
Type NF-1~70
Filtration accuracy (mm) 1~70
Thickness(mm) 0.50.05
Tensile strength(kg/15mm) >2
Rupture strength (MPa) >0.2
Width (mm) 600,1200
Application: The product can be used to filter out solid impurities in oil or water and collect dust and aerosol particles in atmosphere. It has found wide applications in the filtration of high-gradeaviation oil, hydraulic oil for servo system of hydraulic drives in marines and heavy-duty machineries, flooding water for oil fields, water for nuclear power stations and compressed air from compressors, etc.
Packing: Supplied in rolls wrapped with plastic film and contained in cartons. Special specifications are available in rolls upon agreement. |
|
