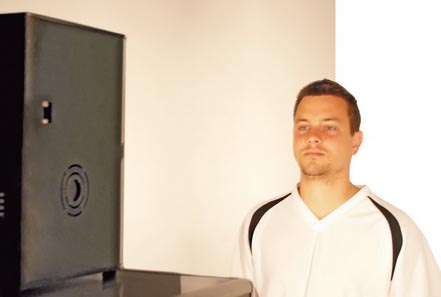

| The Gemini 3D Body Digitizer
|
|
The 3D digitizer Gemini from the Creaform 3D Body Digitizer line-up is easy to use and fast, and it offers excellent resolution! Further, it is the only 3D digitizer that can efficiently digitize both human bodies and other objects. Such versatility makes it an ideal, affordable tool!
Applications and Industries
The Gemini 3D digitizer works fast and efficiently, and the 3D models it generates can be used in a great number of applications, such as:
Medical imaging
Multimedia
Virtual reality
Study in ergonomics
Industrial design
Virtual archiving
And many others
Software
The acquisition software program PCS is supplied along with the Gemini digitizer in order to ensure the acquisition of the 3D data and to visualize the 3D models. This software also offers laser crystal engraving functions.
Technical Specifications of the Gemini
SF Model MF Model
Dimensions 240 x 205 x 300 mm (9.5 x 8.1 x 11.8 in)
Field of view 460 mm x 340 mm
(18.1 in x 13.4 in) 690 mm x 520 mm
(27.2 in x 20.5 in)
Depth of field 450 mm (17.7 in) 650 mm (25.6 in)
Resolution X, Y 0.4 mm (0.02 in) 0.65 mm (0.03 in)
Resolution Z 0.2 mm (0.01 in) 0.3 mm (0.02 in)
Stand-off distance 950 mm (37.4 in) 900 mm (35.4 in)
Reference distance 1100 mm (43.3 in)
Enhanced texture 3.2 megapixels
Geometry 800 000 points
Time of acquisition 0.6 seconds
File formats* .OBJ, .FBX, .DXF, .STL, .VRML, .LWO, .MAYA, .HRC, .3DS
* The file format generated by the Gemini may be converted to standard formats using the Geomagic Wrap software (included). |
|
