| MINIMAT-EC-Servo Screwdriver
|
|
The handheld MINIMAT-EC-Servo Screwdriver allow the free programming of the screw-tightening process and offer maximal flexibility und process reliability. Within the performance range of each screwdriver, the torque, speed, stand-by and rotational direction can be individually customized to the screw assembly task.
The integrated sensor controlled torque- and angle measurement allows the exact control and regulation of the screw tightening process as well as the documentation of important process parameters and guarantees the highest precision. An EC-Servo Screwdriver is used in applications with high safety requirements (critical screw joints), where a direct measuring system is specified.
MINIMAT-EC-Servo screwdriver incorporates a reliable and low maintenance brushless EC-motor. This screwdriver provides outstanding dynamics and high peak torques - ideal for the tightening of screws.

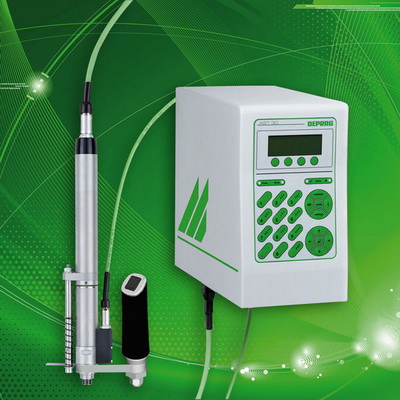

To operate the screwdriver, the sequence controller AST30 with integrated power supply is used. The sequence controller already contains finished base-programs for common tightening processes, so that the start-up requires only a couple of steps.
Comprehensive software add-on modules allow the data acquisition and graphical display for statistical processing and screw-joint analysis.
A position-dependent program selection, monitoring of the screw-succession and additional functions to the increase of the process reliability, are possible when using these screwdrivers in connection with a Positioning stand (Pozi-Stand). |
|
